00 Architecture Overview

Version: 0.1 (Draft) Date: 15 April 2026 Author: Ed Molyneux

---

1. Executive Summary

PDTF 2.0 is the property-specific domain profile for the emerging UK digital identity and credentials ecosystem. It defines property credential types, trust marks, and composition rules within the OpenID Federation framework.

Where PDTF v1 bound property data to a single platform’s verified claims model, PDTF 2.0 makes property data portable, independently verifiable, and interoperable — by adopting the same standards that UK Smart Data, GOV.UK Wallet, and the EU Digital Identity Architecture are converging on: OpenID Federation for trust, OID4VCI for credential issuance, OID4VP for credential presentation, and FAPI 2.0 for high-assurance API security.

PDTF’s unique contribution is the domain layer: an entity graph that decomposes a property transaction into its constituent parts (Transaction, Property, Title, Person, Organisation, and the relationship credentials SellerCapacity, Offer, Gift, Representation, TransactionRole), a schema system that defines what property credentials contain, and composition rules that assemble individual credentials into coherent transaction state.

This document is the master reference for the PDTF 2.0 implementation. It links to sub-specs for each workstream and captures architectural decisions as they’re made.

---

2. What Changes from v1

Aspect	PDTF v1 (Current)	PDTF 2.0
Data model	Monolithic pdtf-transaction.json (~4,000 paths)	Entity graph: Transaction, Property, Title, Person, Organisation, plus role-embodying relationship credentials SellerCapacity, Offer, Gift, Representation, TransactionRole
Claims	OpenID Connect verified claims with pathKey:value REPLACE semantics	W3C Verifiable Credentials with sparse objects, issued via OID4VCI
Identity	Firebase Auth UIDs, no universal identifiers	DIDs (did:key for persons, did:web for organisations) within a governed OpenID Federation
Entity identifiers	Internal Firestore document IDs	URNs: urn:pdtf:titleNumber:{value}, urn:pdtf:uprn:{value}
Verification	Trust the platform serving the data	Cryptographic proof — verify the credential signature, check issuer trust via federation chain
Credential exchange	Platform-specific API calls	OID4VCI (issuance) + OID4VP (presentation) — standard protocols
Provenance	OIDC-derived evidence schema (deeply nested)	Simpler evidence model reflecting actual usage patterns
Access control	Platform-enforced role checks	Per-credential termsOfUse + OID4VP presentation with participation credentials
Trust	Single platform trust	OpenID Federation trust chain with property-specific trust marks
Interoperability	REST API, platform-specific	FAPI 2.0 security profile, MCP + OpenAPI interface, federation metadata discovery
Data sync	Platform-to-platform API calls	Encrypted VC replication — GDPR-safe sync with per-recipient envelope encryption (target architecture; Phase 1 uses platform-level access control)

The key shift is not “OIDC → DIDs” but “platform-bound claims → portable credentials within a federated trust ecosystem.” DIDs remain useful as identifiers for organisations, transactions, and persons — but they sit within a governed federation, not as standalone trust roots.

---

3. Entity Graph

3.1 Core Entities

Entity	Identifier	Schema	Description
Transaction	did:web	v4/Transaction.json	The intent to sell. Metadata, status, dates, and financial context (saleContext). References exactly one Property and one or more Titles. DID document hosts service endpoints.
Property	urn:pdtf:uprn:{uprn}	v4/Property.json	The physical land and buildings. Physical facts, construction, energy, environmental. Governed by the “logbook test” — only facts that survive the transaction belong here.
Title	urn:pdtf:titleNumber:{number}	v4/Title.json	The legal right. Legal boundary, registered owner, tenure, charges.
Person	did:key	v4/Person.json	A natural person (seller, buyer).
Organisation	did:web	v4/Organisation.json	A company (conveyancer, estate agent, lender). Includes regulatory IDs (SRA, Companies House). Outside the v3 round trip: a participant’s firm is on the Transaction roster, and the DID resolves to the Organisation.

3.2 Relationship Credentials (Thin Assertions)

These are signed assertions linking a party to the transaction. They contain minimal data beyond the relationship they describe — and they are the only place a party’s role is recorded.

Entity	Identifier	Schema	Asserts	Role
SellerCapacity	urn:pdtf:capacity:{id}	v4/SellerCapacity.json	This person/organisation sells, in this capacity (legal owner, executor, attorney…). Verified against Title.registerExtract.proprietorship. Issued for every seller. Revocable.	implied: Seller
Offer	urn:pdtf:offer:{id}	v4/Offer.json	This person made this offer: amount, status, conditions, buyer circumstances.	implied: Buyer
Gift	urn:pdtf:gift:{id}	v4/Gift.json	This person gifts funds towards an offer, on these terms.	implied: Giftor
Representation	urn:pdtf:representation:{id}	v4/Representation.json	This party is instructed by that party. One per (representative, represented party) pair. Revocable.	explicit: which kind (Conveyancer, Estate Agent, Mortgage Broker…)
TransactionRole	urn:pdtf:role:{id}	v4/TransactionRole.json	This party takes this role, where no more specific relationship applies (Lender, Landlord, Tenant, Surveyor, Platform Support).	explicit: which role
Mortgage	URN (generated)	Future	Tied to Offer/buyer. Flagged for growth — not in initial implementation.	—

3.3 Roles live on the credentials

The Transaction keeps an ordered roster of parties (participants[]), but the roster carries only what stays true of a party regardless of any relationship: their DID, a transaction-local id, and the firm they work for. Role is stored nowhere else than on the relationship credential that embodies it (01 §3.2, D32).

Why: a second copy would not be revoked. Firing a conveyancer means revoking their Representation. If the Transaction also recorded “Seller’s Conveyancer” against that participant, revocation would remove the relationship and leave the role assertion standing. So dropping a credential from the graph gives back a transaction in which that party has no role and no relationship — which is exactly what revocation should mean.

The two intents. The Transaction is the seller’s intent to sell, embodied by SellerCapacity. An Offer is a buyer’s intent to buy; buyers participate only through Offers. Everyone else is linked to the party they act for — a buyer’s conveyancer holds a Representation whose represented party is the buyer — and every credential references the Transaction directly. Nothing nests.

3.4 Access Control and Traversal

Because every relationship is a credential that references the Transaction, the graph itself is the access control model. No central ACL is required.

Consider a mortgage lender who needs to view the property data to issue a formal mortgage offer:

1. Decision in Principle: The buyer holds a MortgagePromise VC issued by the lender. The buyer presents this to the agent as part of their Offer.
2. Participation: If the offer is accepted, the lender is added to the roster and issued a TransactionRole credential (role: "Lender"). They don’t have a Representation (they aren’t acting for the buyer, they are funding them).
3. Graph Resolution: The TransactionRole acts as the capability token. The lender presents it to the agent’s MCP server/adapter. The server validates the chain: “This lender holds a TransactionRole on this Transaction, whose buyer holds an accepted Offer.” Therefore, the lender is authorised to traverse the transaction graph and read the Property and Title VCs, subject to termsOfUse.

How a scoped, time-limited consent should sit on top of this for finer-grained access is an open consultation question (01 §9.2).

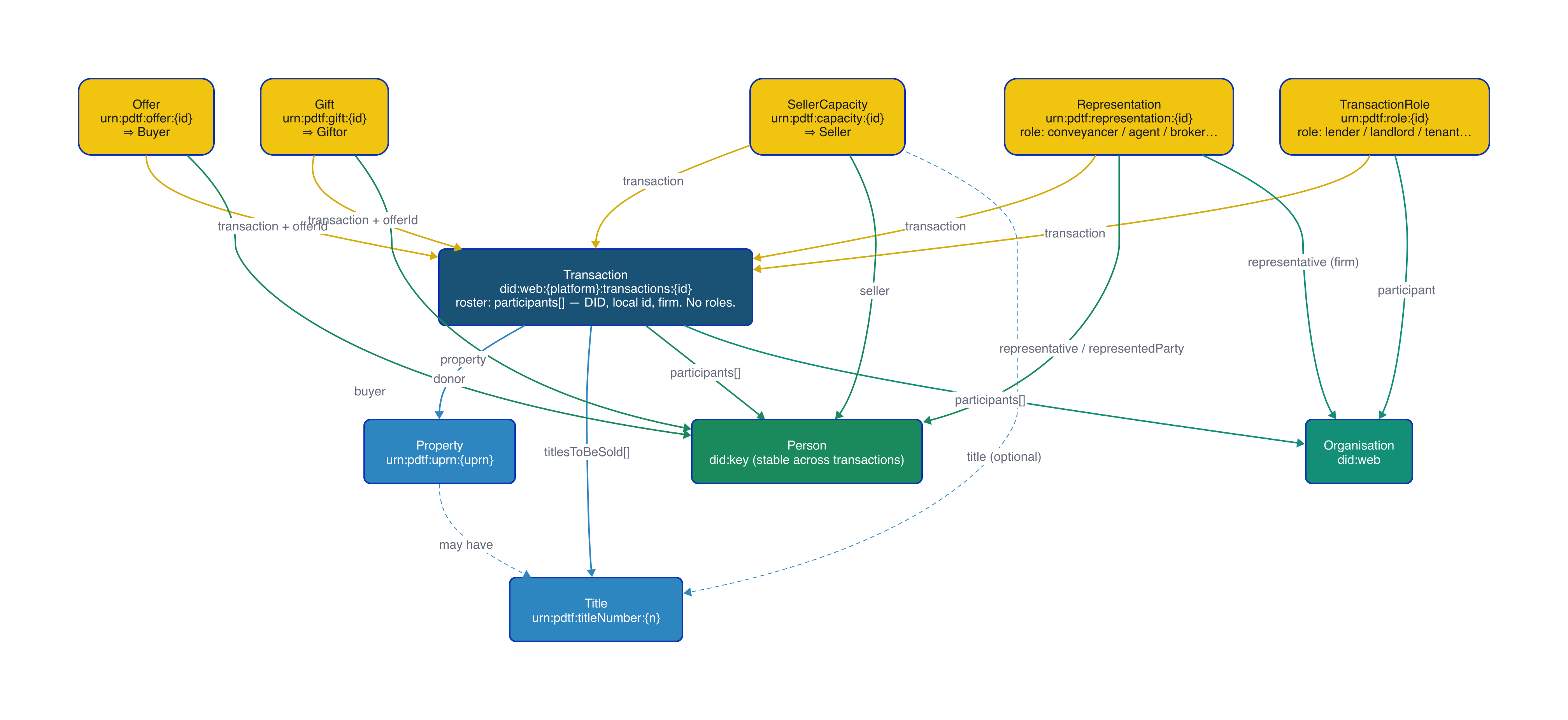

3.5 Entity Relationship Diagram

3.6 Relationship Model

The relationship is Transaction-centric, not Property → Title → Transaction. This matters because:

• Unregistered titles exist — no title number, so no urn:pdtf:titleNumber:*. We need an identifier method for titles which are currently unregistered but for which title evidence is being gathered.
• A transaction may involve multiple titles (e.g. a house and its garage on separate titles).
• The DID-based relationship model handles this naturally — a Transaction DID document references its associated Property and Title identifiers.

Transaction (did:web:platform.example.com:transactions:*)
    ├── property       → Property (urn:pdtf:uprn:*)
    │                     (may have no title — new build, unregistered)
    ├── titlesToBeSold → Title[] (urn:pdtf:titleNumber:* OR urn:pdtf:unregisteredTitle:*)
    │                     (ordered; may span multiple properties)
    │
    ├── participants[] → Person (did:key:*) / Organisation (did:web:*)
    │     └── ROSTER: DID, local id, firm. No roles.
    │
    │   relationship credentials, each referencing the Transaction:
    │
    ├── SellerCapacity  seller → Person/Organisation           ⇒ Seller
    │     └── The capacity in which they sell. Verified against
    │         Title.registerExtract.proprietorship. The Transaction's
    │         Titles are "for sale" because someone with a
    │         SellerCapacity credential says so.
    │
    ├── Offer           buyer → Person/Organisation, offerId   ⇒ Buyer
    │     └── amount, status, conditions, buyer circumstances
    │
    ├── Gift            donor → Person/Organisation, offerId   ⇒ Giftor
    │     └── gift terms the conveyancer must resolve
    │
    ├── Representation  representative → representedParty, role
    │     ├── role: "Seller's Conveyancer" / "Estate Agent"     (instructed by the seller)
    │     └── role: "Buyer's Conveyancer" / "Mortgage Broker"   (instructed by the buyer)
    │     (one per pair; the representative's firm is on the roster)
    │
    └── TransactionRole participant, role
          └── role: "Lender" / "Landlord" / "Tenant" / "Surveyor" / "Platform Support"

Participation decomposed: The old “Participation” entity is replaced by five precise relationship credentials:

• SellerCapacity — the capacity in which a party sells, linking a Person or Organisation DID to the Transaction (and optionally to a Title). The owner starts by asserting it; the platform then verifies against Title.registerExtract.proprietorship (claim-vs-evidence separation). This is what establishes the right to sell.
• Offer — a buyer’s offer. Always identifies exactly one buyer; joint purchasers each hold one with the same offerId.
• Gift — a giftor’s contribution towards an offer. Carries the giftor’s offerId so that Offer ⇒ Buyer stays exact.
• Representation — one party instructed by another. The retainer is with the client, so a conveyancer is instructed by a person, not by an offer; a prospective buyer with no offer yet can still be represented. The credential model supports both Person and Organisation on either side.
• TransactionRole — a role with no instructing party: the lender, a landlord or tenant, platform support. Also the fallback until a more specific relationship is established, so that every party with a role holds exactly one role-bearing credential.

Person vs Organisation: Both can sell, buy, gift, represent, and hold a role. The difference is structural, not role-based: an Organisation has a Companies House identity, SRA registration, and PI insurance — attributes that don’t belong on a Person entity. Both get relationship credentials; both can be on either side of a transaction.

3.3 Key Design Decisions

• Buyers participate only through Offers — no Participation entity for buyers. This models the real-world relationship: a buyer doesn’t “participate” in the seller’s transaction until they make an offer, and multiple offers can exist simultaneously. Buyers can be Persons or Organisations (companies buy property too).
• SellerCapacity establishes the right to sell — the legal owner self-asserts by issuing a SellerCapacity credential linking their DID to the Transaction. This is what puts a title “for sale”. The platform then verifies the claim against the proprietorship register. No separate “listing” entity is needed.
• Role lives only on the relationship credential (D32) — the roster has no role field. Revoking the credential removes the role with it.
• ID-keyed collections — v4 moves from arrays (participants[], searches[]) to ID-keyed maps (like current offers). Where order carried meaning it lives on the Transaction’s reference lists. Breaking change to schema structure but not to the underlying data — path handling code updates required.
• Property-level VCs — EPC, flood risk, searches etc. are Property VCs with paths like /energyEfficiency/certificate, not first-class entity VCs. Primary issuers will use the same paths when they adopt the standard.

3.4 Entity Separation Principle — The Logbook Test

The governing question for field assignment: “Does this fact travel with the property to a new owner?”

• Property = enduring facts (the “logbook”): EPC, flood risk, build info, legal questions, fixtures & fittings, environmental data. If a new buyer inherits it, it’s a Property fact.
• Title = legal title facts: title number, extents (geoJSON), register extract (including proprietorship as evidence), ownership type (freehold/leasehold), leasehold terms and restrictions, isFirstRegistration, mortgage/charge information. The existing branch 263 work already merges ownershipsToBeTransferred into the Title entity.
• Transaction = this-sale facts: numberOfSellers, numberOfNonUkResidentSellers, outstandingMortgage, existingLender, hasHelpToBuyEquityLoan, isLimitedCompanySale. None of these pass the logbook test — they describe this specific transaction, not the property itself.
• SellerCapacity = the capacity in which a Person or Organisation sells (sellersCapacity.capacity, dateBecameOwnerOrAuthority). The owner starts by asserting this themselves — their claim is what establishes the right to sell. The evidence (proprietorship register) lives on the Title entity — SellerCapacity is the claim, Title holds the evidence.

3.5 Existing Work

The entity decomposition is already in progress on the schemas repo:

• Branch: 263-extract-separate-entity-schemas-from-combinedjson-in-preparation-for-pdtf-20
• 120 files changed, 224K lines added
• Extraction utility: src/utils/decomposeSchema.js (576 lines)
• Entity overlay system: per-entity overlay directories with form-specific overlays
• Tests: entity validation, overlay application, extension handling
• V4 entity schemas: Transaction, Property, Title, Person, Participation (Offer not yet created)

---

4. Verifiable Credentials

4.1 W3C VC Data Model

Each piece of property data becomes a signed Verifiable Credential. PDTF defines property-specific credential types within the W3C VC Data Model v2.0, issued and presented using OpenID protocols (see §4.5).

{
  "@context": [
    "https://www.w3.org/ns/credentials/v2",
    "https://trust.propdata.org.uk/ns/pdtf/v2"
  ],
  "type": ["VerifiableCredential", "PropertyCredential"],
  "issuer": "did:key:z6Mkh...abc",
  "validFrom": "2026-03-23T07:00:00Z",
  "credentialSubject": {
    "id": "urn:pdtf:uprn:100023456789",
    "energyEfficiency": {
      "certificate": {
        "certificateNumber": "1234-5678-9012-3456-7890",
        "currentEnergyRating": "C",
        "currentEnergyEfficiency": 72,
        "lodgementDate": "2024-01-15"
      }
    }
  },
  "evidence": [{
    "type": "ElectronicRecord",
    "source": "get-energy-performance-data.communities.gov.uk",
    "retrievedAt": "2026-03-23T06:30:00Z",
    "method": "API"
  }],
  "termsOfUse": [{
    "type": "PdtfAccessPolicy",
    "confidentiality": "public",
    "pii": false
  }],
  "credentialStatus": {
    "id": "https://adapters.propdata.org.uk/status/epc/12345#67890",
    "type": "BitstringStatusListEntry",
    "statusPurpose": "revocation",
    "statusListIndex": "67890",
    "statusListCredential": "https://adapters.propdata.org.uk/status/epc/12345"
  },
  "proof": {
    "type": "DataIntegrityProof",
    "cryptosuite": "eddsa-jcs-2022",
    "verificationMethod": "did:key:z6Mkh...abc#key-1",
    "proofPurpose": "assertionMethod",
    "proofValue": "z3FXQje..."
  }
}

4.2 Relationship to OpenID Verified Claims

PDTF v1 used OpenID Connect verified claims with a pathKey:value model. PDTF 2.0 moves to W3C Verifiable Credentials, but the transition is enabled — not complicated — by the OpenID ecosystem’s own evolution. OID4VCI and OID4VP now provide standard protocols for issuing and presenting VCs, meaning PDTF credentials live within the same ecosystem as the v1 OIDC claims, just in a more expressive and portable format.

Implementers migrating from v1 should note:

• The credentialSubject sparse object replaces claimPath + claimValue
• The evidence model simplifies the deeply nested OIDC evidence schema
• termsOfUse carries the same confidentiality/PII/role semantics as before
• credentialStatus adds revocation capability (absent in v1)
• proof adds cryptographic verification (absent in v1)

4.3 Claims Representation — Sparse Objects + Dependency Pruning

Decision: Move away from pathKey:value REPLACE semantics toward sparse objects with dependency pruning. Consensus needed from LMS and other implementers.

Current approach (v1):

{ "claimPath": "/propertyPack/heating/heatingSystem/heatingType", "claimValue": "Central heating" }
{ "claimPath": "/propertyPack/heating/heatingSystem/centralHeatingDetails/fuelType", "claimValue": "Mains gas" }

When heatingType changes from “Central heating” to “None”, the centralHeatingDetails claim still exists in the database — REPLACE only overwrites the specific path.

New approach (v2):

{
  "credentialSubject": {
    "id": "urn:pdtf:uprn:100023456789",
    "heating": {
      "heatingSystem": {
        "heatingType": "None"
      }
    }
  }
}

State assembly uses MERGE semantics. A dependency pruning pass then strips centralHeatingDetails because the schema’s oneOf discriminator on heatingType makes it irrelevant when value is “None”.

Why this matters: The pruning pass is the clean, spec-compliant way to handle dependent data. It requires implementers to understand schema discriminators, but the reference implementation will handle it and the alternative (REPLACE semantics with potential stale nested data) is worse.

4.4 Proof Format: Data Integrity vs JWS/VC-JWT

PDTF 2.0 uses Data Integrity proofs (eddsa-jcs-2022) as the primary securing mechanism for credentials at rest and in storage. Both Data Integrity and JWS are valid securing mechanisms for W3C VCs. The choice has meaningful consequences.

	Data Integrity (PDTF primary)	JWS / VC-JWT
Proof location	proof object embedded in the VC JSON	Detached JWS or entire VC wrapped as a JWT (header.payload.signature)
Canonicalisation	JCS (JSON Canonicalization Scheme, RFC 8785)	None needed — signs raw bytes
Human readability	VC is plain JSON, directly inspectable	VC-JWT requires base64 decoding before any claims are visible
Selective disclosure path	Foundation for BBS+ and JSON-LD ZKP mechanisms	Requires SD-JWT (separate spec)
W3C VC 2.0 positioning	Primary securing mechanism	Supported but positioned as legacy
OID4VCI format	ldp_vc credential format	jwt_vc_json credential format
Key algorithm	Ed25519 (via eddsa-jcs-2022 cryptosuite)	Algorithm-agnostic (RS256, ES256, EdDSA, etc.)

Rationale for Data Integrity as primary format:

1. JSON-native. PDTF VCs stay as parseable JSON throughout their lifecycle. Consumers, debuggers, and AI agents can read claims without decoding. VC-JWT produces opaque base64 blobs that must be unpacked before inspection.

2. Selective disclosure upgrade path. Data Integrity is the foundation for BBS+ signatures, enabling future scenarios like “share the EPC rating but not the address” without re-issuance.

3. W3C alignment. The VC Data Model v2.0 editors have positioned Data Integrity as the primary path forward.

4. Deterministic serialisation. JCS provides a canonical JSON form regardless of whitespace or key ordering.

Where JWS/JWT is used in PDTF 2.0:

• OID4VCI credential responses may use jwt_vc_json format when interacting with wallet implementations that prefer JWT. PDTF adapters MUST support ldp_vc and SHOULD support jwt_vc_json.
• OID4VP presentation tokens use JWT as the transport envelope (VP Token), while the credentials inside remain Data Integrity VCs.
• OpenID Federation entity statements are signed JWTs by definition — this is the federation layer, not the credential layer.
• Status list credentials use Data Integrity for consistency, but JWS is technically permitted.

4.5 Credential Issuance and Presentation Protocols

PDTF 2.0 uses OpenID standards for credential exchange:

OID4VCI (OpenID for Verifiable Credential Issuance) — how credentials are issued:

• Adapters and primary sources act as OID4VCI credential issuers
• Each issuer publishes a credential issuer metadata document at /.well-known/openid-credential-issuer
• Supported credential formats: ldp_vc (primary), jwt_vc_json (interoperability)
• Credential types are PDTF-defined: PropertyCredential, TitleCredential, SellerCapacityCredential, RepresentationCredential, etc.
• Pre-authorised code flow for adapter-initiated issuance (no user interaction needed for data lookups)
• Authorization code flow for user-initiated credential requests

OID4VP (OpenID for Verifiable Presentations) — how credentials are presented:

• Participants present credentials to prove their relationship to a transaction
• Presentation definition specifies which credential types are required (e.g. SellerCapacityCredential or RepresentationCredential)
• VP Token contains the Verifiable Presentation with the requested credentials
• Used for both human-initiated flows (wallet) and machine-to-machine (API access)

{
  "presentation_definition": {
    "id": "pdtf-transaction-access",
    "input_descriptors": [{
      "id": "participation-proof",
      "constraints": {
        "fields": [{
          "path": ["$.type"],
          "filter": {
            "type": "array",
            "contains": {
              "enum": ["SellerCapacityCredential", "OfferCredential", "RepresentationCredential", "TransactionRoleCredential"]
            }
          }
        }]
      }
    }]
  }
}

---

5. Identifiers & Discovery

5.1 DID Methods

DIDs serve as identifiers for organisations, persons, and transactions within the PDTF ecosystem. They are not standalone trust roots — trust is established through the OpenID Federation chain (§6), and DIDs provide the cryptographic binding between an entity and its keys.

Entity	DID Method	Example	Resolution
Persons	did:key	did:key:z6Mkh...abc	Self-resolving from public key, no hosting needed
Organisations	did:key or did:web	did:key:z6Mkf...xyz or did:web:smithandjones.co.uk	did:key when managed by account provider (e.g. LMS); did:web when self-hosting identity
Transactions	did:web	did:web:platform.example.com:transactions:abc123	Hosted DID document at https://platform.example.com/transactions/abc123/did.json
Trusted Adapters	did:web	did:web:adapters.propdata.org.uk:hmlr	Hosted DID document with service endpoints for VC requests + federation entity configuration

5.2 URN Scheme

urn:pdtf:uprn:{uprn}           → Property identifier
urn:pdtf:titleNumber:{number}  → Title identifier
urn:pdtf:capacity:{uuid}       → SellerCapacity (⇒ Seller)
urn:pdtf:offer:{uuid}          → Offer (⇒ Buyer)
urn:pdtf:gift:{uuid}           → Gift (⇒ Giftor)
urn:pdtf:representation:{uuid} → Representation (representative ↔ represented party, role)
urn:pdtf:role:{uuid}           → TransactionRole (participant, role)

5.3 Discovery Model

Discovery in PDTF 2.0 combines OpenID Federation metadata resolution with DID document resolution:

1. Federation metadata — resolve the entity’s OpenID Federation entity configuration at /.well-known/openid-federation. This establishes trust (is this entity part of the federation?) and capabilities (what credential types does it issue?).

2. DID document — resolve the entity’s DID document for cryptographic keys and service endpoints. For did:web entities, this is at the standard did.json path.

3. Credential issuer metadata — for adapters/issuers, resolve /.well-known/openid-credential-issuer for OID4VCI-specific metadata (supported credential types, formats, endpoints).

For a transaction, the discovery flow is:

Transaction DID (did:web:platform.example.com:transactions:abc123)
  → DID Document (keys, service endpoints including PDTF API and MCP)
  → Federation entity configuration (trust chain, trust marks)
  → Credential issuer metadata (for adapters providing data to this transaction)

5.4 Access Control

To access restricted or confidential VCs (or the pre-composed state derived from them), a requester must:

1. Present a valid credential via OID4VP — a SellerCapacity, Offer, Representation, or TransactionRole credential proving their relationship to the transaction
2. Prove control of their DID — implicit in the OID4VP flow (the VP is signed by the holder’s key)
3. Revocation check — the presented credential must not be revoked (Bitstring Status List check)
4. termsOfUse filtering — the system returns only VCs whose termsOfUse policy permits access for the requester’s role

Public VCs (title deeds, EPCs, searches) require no authentication.

---

6. Trust Architecture

6.1 Federated Trust via OpenID Federation

PDTF 2.0 uses OpenID Federation (RFC 9396) as its trust infrastructure. The federation model establishes who is authorised to issue which property credentials, using a chain of signed entity statements from a trust anchor down to leaf entities.

                    ┌──────────────────────────┐
                    │  Trust Anchor             │
                    │  (propdata.org.uk)        │
                    │  ──────────────────       │
                    │  Entity Configuration     │
                    │  + Trust Mark Issuer      │
                    └──────────┬───────────────┘
                               │ subordinate statement
                    ┌──────────▼───────────────┐
                    │  Intermediate Entity      │
                    │  (sector authority, e.g.  │
                    │   property data services) │
                    └──────────┬───────────────┘
                               │ subordinate statement
                    ┌──────────▼───────────────┐
                    │  Leaf Entity              │
                    │  (adapter / issuer)       │
                    │  ──────────────────       │
                    │  Entity Configuration     │
                    │  + Trust Marks held       │
                    │  + OID4VCI metadata       │
                    └──────────────────────────┘

How it works:

1. The Trust Anchor publishes its entity configuration at https://propdata.org.uk/.well-known/openid-federation, containing its signing keys and federation policy.

2. The Trust Anchor issues subordinate entity statements for each authorised entity in the federation — these are signed JWTs that bind the subordinate’s identifier to its metadata and any constraints.

3. Each leaf entity (adapter, issuer) publishes its own entity configuration at its domain, including the trust marks it holds and its OID4VCI credential issuer metadata.

4. A verifier resolves the trust chain by fetching the leaf entity’s configuration, walking up through subordinate statements to the trust anchor, and validating signatures at each level.

Entity configuration example (adapter):

{
  "iss": "https://adapters.propdata.org.uk/hmlr",
  "sub": "https://adapters.propdata.org.uk/hmlr",
  "iat": 1713186000,
  "exp": 1744722000,
  "jwks": {
    "keys": [{
      "kty": "OKP",
      "crv": "Ed25519",
      "x": "O2onvM62pC1io6jQKm8Nc2UyFXcd4kOmOsBIoYtZ2ik",
      "kid": "hmlr-adapter-key-1",
      "use": "sig"
    }]
  },
  "metadata": {
    "openid_credential_issuer": {
      "credential_issuer": "https://adapters.propdata.org.uk/hmlr",
      "credential_endpoint": "https://adapters.propdata.org.uk/hmlr/credential",
      "credentials_supported": [{
        "format": "ldp_vc",
        "types": ["VerifiableCredential", "TitleCredential"],
        "cryptographic_binding_methods_supported": ["did:key", "did:web"]
      }]
    }
  },
  "trust_marks": [{
    "id": "https://propdata.org.uk/trust-marks/title-data-provider",
    "trust_mark": "eyJhbGciOiJFZERTQSIs..."
  }],
  "authority_hints": ["https://propdata.org.uk"]
}

6.2 Property Trust Marks

Trust marks are the PDTF-specific mechanism for expressing what an entity is authorised to do within the property ecosystem. They use the OpenID Federation trust mark standard (see Sub-spec 04).

Each trust mark is a signed JWT issued by the trust anchor (or a delegated trust mark issuer), asserting that an entity meets the requirements for a specific role:

Trust Mark ID	Meaning	Issued To
https://propdata.org.uk/trust-marks/title-data-provider	Authorised to issue TitleCredentials	HMLR, adapters proxying HMLR data
https://propdata.org.uk/trust-marks/search-provider	Authorised to issue property search credentials	Search providers, LLC adapters
https://propdata.org.uk/trust-marks/regulated-conveyancer	SRA/CLC regulated conveyancing firm	Conveyancer organisations
https://propdata.org.uk/trust-marks/energy-data-provider	Authorised to issue EPC/energy credentials	MHCLG, EPC adapters
https://propdata.org.uk/trust-marks/environmental-data-provider	Authorised to issue environmental risk credentials	EA, flood risk adapters
https://propdata.org.uk/trust-marks/account-provider	Authorised to issue user DIDs on behalf of persons	The reference platform, LMS, wallet providers

Trust mark structure:

{
  "iss": "https://propdata.org.uk",
  "sub": "https://adapters.propdata.org.uk/hmlr",
  "id": "https://propdata.org.uk/trust-marks/title-data-provider",
  "iat": 1713186000,
  "exp": 1744722000,
  "ref": "https://propdata.org.uk/trust-marks/title-data-provider/policy",
  "delegation": {
    "authorised_paths": [
      "Title:/titleNumber",
      "Title:/titleExtents",
      "Title:/registerExtract",
      "Title:/ownership/*"
    ],
    "trust_level": "trusted_proxy",
    "proxy_for": "hmlr.gov.uk"
  }
}

The delegation claim is a PDTF extension to the standard trust mark. It carries the entity:path authorisation — specifying exactly which credential subject paths an issuer is authorised to populate. This is PDTF’s domain-specific contribution to the trust mark: not just “this entity is a title data provider” but “this entity is authorised to issue credentials covering these specific data paths.”

6.3 Issuer Accreditation

How an entity obtains trust marks and joins the federation:

Phase 1 (bootstrap):

1. Entity applies to the trust anchor operator (initially propdata.org.uk)
2. Trust anchor verifies the entity’s identity and authorisation (e.g. SRA registration for conveyancers, contractual relationship for data adapters)
3. Trust anchor issues a subordinate entity statement and the appropriate trust marks
4. Entity publishes its entity configuration referencing the trust anchor

Phase 2+ (federated governance):

1. A property sector governance body operates the trust anchor
2. Multiple trust mark issuers may exist (e.g. SRA issues regulated-conveyancer trust marks directly)
3. Trust chains can be deeper — a sector authority issues subordinate statements for categories of issuers

All federation metadata is signed-JWT-based: Entity Configurations, Subordinate Entity Statements, and Trust Marks. See Sub-spec 04: OpenID Federation for the full trust architecture.

6.4 Trust Infrastructure Comparison

	OpenID Federation (PDTF)	EBSI Root-TAO / TAO
Trust anchor	Trust Anchor Entity Statement	Root TAO (governmental)
Authority scope	Trust marks + metadata_policy	VerifiableAccreditation VC
Discovery	HTTP .well-known/openid-federation chain resolution	DID resolution + on-chain registry
Chain depth	Flexible (n levels)	Fixed 3-tier (Root TAO → TAO → TI)
Chain format	Signed JWTs (Entity Statements)	VCs (accreditations are VCs)
Revocation of trust	Expire/withdraw Entity Statement	Revoke the accreditation VC
Governance	Federated (each anchor sets policy)	Centralised (EU institutional)
Infrastructure	HTTPS endpoints	Permissioned blockchain (EBSI ledger)
UK ecosystem fit	High (OIDC-native, UK gov direction)	Low (EU-centric, blockchain dependency)

Why OpenID Federation is the right choice:

OpenID Federation provides:

• Signed trust chains — every level of the chain is cryptographically verifiable, not just the leaf credentials
• Decentralised governance — each trust anchor sets its own policy; no single registry to control
• Ecosystem alignment — UK Smart Data, GOV.UK Wallet, and EUDI are all converging on OpenID Federation
• Credential-format agnostic — works with both Data Integrity VCs and JWT VCs
• Existing infrastructure — plugs into OAuth/OIDC infrastructure that platforms already operate

Why not EBSI’s model:

EBSI’s Root-TAO/TAO hierarchy is conceptually elegant — trust chains are VCs all the way down. But it requires a permissioned blockchain, assumes governmental top-down accreditation, and carries schema overhead that doesn’t fit the UK property ecosystem’s lateral trust relationships.

6.5 Three-Phase Evolution

Phase 1 (now): The Platform as Federation Trust Anchor

• The platform operator runs the trust anchor at propdata.org.uk
• Existing collectors become OID4VCI credential issuers (adapters) as leaf entities
• Each adapter holds trust marks issued by the trust anchor
• Federation metadata served from the PDTF Trust Anchor at trust.pdtf.org
• The reference platform is the sole account provider for user DIDs
• “Map-and-wrap”: call existing APIs (HMLR OC1, EPC API, EA flood), issue as signed VCs via OID4VCI

Phase 2 (medium-term): Federated Governance

• Property sector governance body operates the trust anchor (or becomes a higher-level trust anchor above the platform operator)
• Multiple organisations can run adapters (TM Group, LMS) — each with their own entity configuration and trust marks
• Adapters hosted independently (adapters.propdata.org.uk) with their own federation metadata
• SRA/CLC issue regulated-conveyancer trust marks directly
• Multiple account providers for user DIDs

Phase 3 (future): Government Sources as Trust Anchors

• HMLR, MHCLG, Environment Agency publish their own federation entity configurations
• They become trust anchors or intermediate entities in their own right, issuing credentials directly via OID4VCI
• Trust marks for adapter proxies carry proxy_for indicating the primary source
• Primary source credentials carry higher trust weight than proxy credentials
• Verifiers can resolve trust chains to government sources without intermediaries

---

7. Key Management

7.1 Architecture

• Google Cloud KMS for all key storage in production
• Ed25519 key algorithm (expressed as JWK in federation metadata and DID documents)
• One key per user (generates their did:key identity)
• One key per adapter (for signing VCs and federation entity configuration)
• One key for the platform / trust anchor (for signing trust marks and subordinate entity statements)

Keys are published in two places:

1. Federation entity configuration — JWKS in the entity statement, used for federation trust chain verification
2. DID documents — verification methods, used for VC signature verification

Both reference the same underlying key material. The federation JWKS uses standard JWK format:

{
  "kty": "OKP",
  "crv": "Ed25519",
  "x": "O2onvM62pC1io6jQKm8Nc2UyFXcd4kOmOsBIoYtZ2ik",
  "kid": "hmlr-adapter-key-1",
  "use": "sig"
}

7.2 Key Rotation

Key rotation follows OpenID Federation metadata update semantics:

1. Generate new key pair in Cloud KMS
2. Update the entity configuration to include both old and new keys in the JWKS (overlap period)
3. Update the DID document’s verificationMethod to include the new key
4. Begin signing new credentials and entity statements with the new key
5. After the overlap period (determined by exp on existing credentials and entity statements), remove the old key
6. Trust anchor re-issues subordinate entity statements referencing the updated JWKS

The overlap period ensures that credentials signed with the old key remain verifiable until they expire or are superseded. Federation entity statements have their own exp — rotating the statement key requires the trust anchor to re-issue the subordinate statement.

7.3 Credential Revocation

All issuers must support revocation via W3C Bitstring Status List v2. This is critical for:

• SellerCapacity/Representation credentials — must be revocable when a sale completes, a mandate is withdrawn, or a conveyancer is replaced
• Property data VCs — revocable when data is superseded (e.g. new EPC issued, updated flood risk assessment)
• User DID credentials — revocable when a user account is disabled or identity verification is invalidated
• Trust marks — revocable when an entity’s accreditation is withdrawn (complementing the trust mark’s exp)

How it works:

1. Each issuer hosts one or more Bitstring Status List credentials at a public URL
2. Each VC includes a credentialStatus field pointing to its entry in the status list
3. The status list is a compressed bitstring — each bit position maps to a credential
4. To revoke: issuer flips the bit at the credential’s statusListIndex
5. Verifiers fetch the status list (cacheable with short TTL) and check the bit

Adapter hosting: Each adapter hosts its own status list endpoints (e.g. adapters.propdata.org.uk/status/epc/{listId}). Status lists are signed by the same adapter key used for VC issuance.

7.4 Key Hierarchy

Google Cloud KMS
├── Trust Anchor Key (propdata.org.uk)
│   └── Signs: subordinate entity statements, trust marks
│
├── Adapter Keys (did:web, per-adapter)
│   ├── hmlr-proxy-key → did:web:adapters.propdata.org.uk:hmlr
│   ├── epc-proxy-key → did:web:adapters.propdata.org.uk:epc
│   └── ea-flood-proxy-key → did:web:adapters.propdata.org.uk:ea-flood
│   (Each signs: VCs, entity configuration, status lists)
│
├── User Keys (did:key, per-user)
│   ├── user-{uid}-key → did:key:z6Mkh...abc
│   └── ...
│
└── Platform Key (platform operator identity)
    └── pdtf-platform-key → did:web:platform.example.com

7.5 Custodial Cloud Wallets vs Bring-Your-Own-Wallet

A strict Verifiable Credential model assumes users hold their own keys in a mobile wallet app, signing every assertion they make. In a property transaction, prompting a user to sign every page of a property information form (TA6) via a mobile app pop-up creates an unacceptable user experience.

To solve this while retaining cryptographic provenance, PDTF platforms use a Custodial Cloud Wallet pattern:

1. Onboarding & IDV: The platform performs AML/ID checks and issues an Identity VC for the user.
2. Key Provisioning: The platform generates a unique, secure enclave key pair (e.g. in Cloud KMS) for that specific user.
3. Session Binding: When the user logs into the web portal, their session is securely bound to that cloud wallet key.
4. Seamless Signing: As the user fills out forms, the platform backend uses the user’s KMS key to sign the assertions in the background.
5. Presentation: The platform packages the signed assertions plus the Identity VC into an OID4VP presentation and delivers it to the verifier (e.g. the buyer’s conveyancer).

To the verifier, this looks exactly like a standard OpenID presentation from a personal digital wallet — they receive cryptographic proof that the verified person made the assertions. To the user, it feels like a normal web application.

Future migration to BYOW: When government or ecosystem wallets (e.g. GOV.UK Wallet, EUDI) become mainstream, users can choose to “Bring Your Own Wallet” (BYOW). They authenticate via OID4VP and sign a finalised document at the end of the process using their own device key. The underlying PDTF architecture and verification logic does not need to change to support this migration.

---

8. State Assembly

8.1 Dual Composition

Three state assembly functions, used in sequence:

1. composeStateFromClaims (current) — aggregates pathKey:value verified claims with REPLACE semantics. No changes, backward compatible, continues to power existing v3 endpoints.

2. composeV3StateFromGraph — traverses the entity graph, assembles VCs into a v3-compatible flat state. Uses the existing combined.json schema shape. Replaces composeStateFromClaims once coverage is complete.

3. composeV4StateFromGraph — traverses the entity graph, assembles VCs into a v4 entity-based state. Internal handlers migrate to this. Uses sparse object MERGE + dependency pruning.

8.2 Migration Path

Migration strategy is resolved via parallel running (Q6.1–Q6.3 resolved).

Phase 1: composeStateFromClaims (existing, v3 shape)
         ↓ parallel
Phase 2: composeV3StateFromGraph (same output as Phase 1, different input) - parallel running resolves Q6
         → validate: outputs must match
         → once confident, replace Phase 1 internally
         ↓ parallel
Phase 3: composeV4StateFromGraph (new entity-based shape)
         → internal handlers migrate one by one
         → external v3 API continues to use composeV3StateFromGraph

8.3 DiligenceEngine Path Migration

Current DE paths: propertyPack/heating/heatingSystem/heatingType Entity paths: property:heating/heatingSystem/heatingType

The property: prefix maps to the Property entity. pdtfPaths.js becomes a mapper that resolves entity:path to the appropriate entity and sub-path. The paths themselves aren’t entity-specific (no UPRN in the path) — the entity context is provided by which entity the path is being evaluated against.

---

9. Hosted Adapter Services

9.1 Architecture

Separate domain: adapters.propdata.org.uk (new GCP project, potentially open-sourced).

Each adapter is an OID4VCI credential issuer and an OpenID Federation leaf entity:

• Has its own did:web identity (DID document at adapters.propdata.org.uk/{adapter}/did.json)
• Publishes federation entity configuration at adapters.propdata.org.uk/{adapter}/.well-known/openid-federation
• Publishes credential issuer metadata at adapters.propdata.org.uk/{adapter}/.well-known/openid-credential-issuer
• Holds trust marks from the property sector trust anchor
• Has its own signing key in Google Cloud KMS
• Calls existing source APIs (HMLR OC1, EPC API, EA flood data, LLC API, etc.)
• Issues signed VCs in PDTF 2.0 format via OID4VCI credential endpoint

9.2 Initial Adapters (from existing collectors)

Adapter	Source API	Credential Types	Trust Mark	Priority
hmlr	HMLR OC1/OC2	TitleCredential	title-data-provider	High
epc	MHCLG EPC API	PropertyCredential (energy paths)	energy-data-provider	High (just rebuilt)
ea-flood	EA Flood Risk API	PropertyCredential (flood paths)	environmental-data-provider	High
llc	HMLR LLC API	PropertyCredential (LLC paths)	search-provider	Medium
bsr	BSR Register API	PropertyCredential (building safety)	search-provider	Medium
voa	VOA Council Tax	PropertyCredential (council tax)	search-provider	Lower

9.3 Adapter Credential Issuance Flow

OID4VCI Credential Request
  → Adapter validates requester (OID4VP participation proof or pre-authorised code)
  → Adapter calls source API
  → Adapter maps response to PDTF entity schema
  → Adapter signs VC with its KMS key
  → Returns signed VC in OID4VCI credential response

The pre-authorised code flow is typical for adapter-initiated issuance: the platform requests a credential for a specific property/title, and the adapter issues it without user interaction. The authorization code flow is used when a user initiates a credential request through a wallet or application.

9.4 Access Control for Adapter API

1. Requester presents a SellerCapacity, Offer, Representation, or TransactionRole credential via OID4VP
2. Adapter verifies the VP signature and the contained credential(s)
3. Adapter checks credential is not revoked (Bitstring Status List)
4. Adapter verifies its own trust chain is valid (federation metadata)
5. Adapter checks termsOfUse of requested entity:paths against requester’s role
6. If authorised: fetch data, issue VC, return
7. If public data: no authentication required

(Full spec: papers/pdtf-v2/12-adapter-access-control.md — TBD)

---

10. Reference Implementations

10.1 Planned

Component	Description	Language	Repo
VC Validator	Validates VC signature, resolves federation trust chain, checks trust marks, verifies proof	TypeScript	property-data-standards-co/pdtf-vc-validator
Graph Composer	Traverses entity graph, assembles state from VCs	TypeScript	Part of @pdtf/schemas
DID Resolver	Resolves did:key and did:web identifiers	TypeScript	property-data-standards-co/pdtf-did-resolver
Credential Builder	Creates and signs VCs with PDTF context, OID4VCI-compatible	TypeScript	property-data-standards-co/pdtf-vc-builder
Federation Client	Resolves OpenID Federation trust chains, validates trust marks	TypeScript	property-data-standards-co/pdtf-federation-client

10.2 Validator Flow

Input: VC document
  → Parse and validate structure (JSON-LD context, required fields)
  → Extract issuer DID
  → Resolve DID → public key
  → Verify proof signature against public key
  → Resolve federation trust chain for issuer:
      → Fetch issuer's entity configuration
      → Walk authority_hints to trust anchor
      → Validate subordinate entity statements at each level
      → Verify trust marks held by issuer
  → Check issuer's trust marks cover the credential's entity:path combinations
  → Check credential is not expired
  → Check credential revocation status:
      → Fetch Bitstring Status List from credentialStatus.statusListCredential (cached, short TTL)
      → Verify status list credential signature
      → Check bit at statusListIndex — if set, credential is revoked
  → Return: { valid: true, trustLevel: "trusted_proxy", trustMarks: ["title-data-provider"], revoked: false }

---

11. NPTN Integration

NPTN (National Property Transaction Network) is LMS’s implementation of PDTF v1 as a data hub. PDTF 2.0 needs to work with NPTN, not replace it.

11.1 Strategy

• NPTN continues as the transaction orchestration layer (the “road”)
• PDTF 2.0 VCs flow through NPTN as the data format
• NPTN validates VCs using the reference validator (which now includes federation trust chain resolution)
• Credential exchange between NPTN and participants uses OID4VP — participants present credentials to prove their relationship, and NPTN presents credentials to participants
• NPTN’s existing claim filtering (confidentiality, role-based) maps to VC termsOfUse
• NPTN can act as a federation intermediate entity, with trust marks authorising it to relay credentials
• LMS documentation (spec 10) explains the architecture in terms they can implement

11.2 LMS Documentation Plan

Comprehensive guide covering:

• Why VCs and OpenID Federation (business case, not just technical)
• How NPTN handles VCs (receive via OID4VCI, validate, store, present via OID4VP, filter, serve)
• Migration path from current verified claims to VCs
• Reference validator and federation client integration
• Timeline aligned with NPTN roadmap

---

12. API Design & Access Model

12.1 Security Profile: FAPI 2.0

PDTF 2.0 adopts FAPI 2.0 (Financial-grade API Security Profile) as its high-assurance security layer. Property transactions involve sensitive personal and financial data — the same security guarantees required in open banking apply here.

FAPI 2.0 provides:

• Sender-constrained tokens (DPoP or mTLS) — tokens are bound to the client that requested them, preventing token theft/replay
• PAR (Pushed Authorization Requests) — authorization parameters are sent directly to the server, not via browser redirect
• JARM (JWT-Secured Authorization Response Mode) — authorization responses are signed, preventing response injection
• PKCE — mandatory for all authorization code flows

This is not “FAPI for transport only” — FAPI 2.0 is the security profile for all API interactions, including OID4VCI credential requests and OID4VP presentation flows.

12.2 Unified API: MCP + OpenAPI

The core PDTF API is MCP-compliant (Model Context Protocol). Every transaction is a discoverable, agent-accessible resource via the transaction DID document’s service endpoints. The same underlying operations are exposed through both:

• MCP binding — tools, resources, and prompts for AI agents. An agent can authenticate, browse transactions, fetch and verify credentials, compose state, and run diligence queries through MCP tool calls.
• OpenAPI binding — conventional REST endpoints with typed schemas for traditional integrators building web applications, mobile apps, and backend services.

Both bindings share the same service layer, authentication model (FAPI 2.0), and credential access rules. The MCP binding is not a wrapper around the REST API — they are peer interfaces to the same operations.

Core operations (both bindings):

Operation	Description
resolveTransaction(did)	Resolve a transaction DID → DID document, service endpoints, federation metadata
fetchCredentials(identifier, options)	Fetch VCs by entity identifier (UPRN, title number, transaction DID) with optional type/path filtering
composeState(transactionDid, options)	Traverse the full entity graph from a transaction DID, collect all VCs, compose state with dependency pruning. Options: v3/v4 format, include provenance
verifyCredential(vc)	Verify a single VC: signature check, federation trust chain resolution, revocation status
issueCredential(type, subject, data)	Issue a new VC via OID4VCI (adapter/platform only)
revokeCredential(id)	Revoke a VC by flipping its status bit (issuer only)
listParticipants(transactionDid)	List the roster and the relationship credentials (SellerCapacity, Offer, Gift, Representation, TransactionRole) for a transaction
submitOffer(transactionDid, offer)	Submit a buyer offer
presentCredentials(presentationDefinition)	OID4VP credential presentation

AI agent skill layer: PDTF publishes agent skills (tool definitions + usage documentation) that allow AI agents to:

• Build interface code against the API (code generation from the skill)
• Directly operate on transactions (fetch VCs, compose state, run diligence) via MCP tool calls
• Authenticate and prove participation via OID4VP without manual credential management

12.3 Authentication via OID4VP

Access to transaction data requires proof that the requester is a participant. Authentication uses OID4VP:

Phase 1: Account Provider Delegation (Custodial)

In Phase 1, the account provider (e.g. LMS) holds the user’s private key in KMS. Authentication works via OAuth + OID4VP:

1. Agent/client authenticates via FAPI 2.0 flow with the account provider
2. Account provider verifies the user’s identity and maps to their did:key
3. Account provider constructs a Verifiable Presentation (VP) on behalf of the user using their KMS-held key — the VP contains the user’s participation credential(s)
4. PDTF service verifies the VP via OID4VP, confirms participation credential validity and federation trust chain, grants access

Agent → FAPI 2.0 → Account Provider → KMS Sign VP → Agent → OID4VP → PDTF Service → Verify → Access

Phase 2: Direct Wallet Auth

When users hold their own keys (wallet binding), standard OID4VP flow:

1. PDTF service sends presentation request with a presentation definition specifying required credential types
2. User’s wallet constructs VP containing the requested credentials, signed with the wallet key
3. PDTF service verifies the VP signature, credential validity, federation trust chain, and revocation status

In both phases, the participation credential is the authorization — no separate role-check needed.

12.4 Platform-to-Platform Sync & VC Encryption

Phase 1 note: Envelope encryption is the target architecture for multi-platform sync. In Phase 1, where the reference platform is the sole platform, VC encryption is not implemented — data access is controlled through platform-level authentication and termsOfUse filtering. The encryption model described here will be specified in detail in Sub-spec 12 when multi-platform sync is introduced.

Platforms (LMS systems, conveyancer software, orchestrators) need to sync VC collections to ensure all participants have the latest data. The challenge: GDPR exposure. A platform shouldn’t hold decryptable personal data for transactions it’s not a participant in.

Solution: Envelope encryption on credential content.

Encryption Model

PDTF uses ECDH-ES+A256KW (Elliptic Curve Diffie-Hellman Ephemeral Static + AES-256 Key Wrap) with X25519 key agreement, complementing the Ed25519 signing keys already in the architecture:

1. Every DID document includes a keyAgreement verification method — an X25519 public key derived from (or alongside) the Ed25519 signing key
2. Credential content is encrypted with a random AES-256-GCM content encryption key (CEK)
3. The CEK is wrapped (encrypted) per-recipient — one wrapped key per participant DID that has access rights (based on termsOfUse role restrictions)
4. The encrypted VC is a JWE (JSON Web Encryption) envelope containing: encrypted payload + per-recipient wrapped keys + metadata

{
  "protected": { "alg": "ECDH-ES+A256KW", "enc": "A256GCM" },
  "recipients": [
    { "header": { "kid": "did:key:z6Mk...#key-agreement" }, "encrypted_key": "..." },
    { "header": { "kid": "did:web:smithandjones.co.uk#key-agreement" }, "encrypted_key": "..." },
    { "header": { "kid": "did:web:platform.example.com#key-agreement" }, "encrypted_key": "..." }
  ],
  "iv": "...",
  "ciphertext": "...",
  "tag": "..."
}

Sync Model

With envelope encryption, platforms can sync freely:

• Replicate all encrypted VCs for a transaction — they’re opaque blobs to non-participants
• Only participants with a wrapped key can decrypt — decryption requires the X25519 private key matching one of the recipients
• A platform that can’t decrypt is not a data controller for that content under GDPR
• Revocation status is still public (Bitstring Status Lists are unsigned data) — platforms can check revocation without decrypting content
• VC signatures remain valid inside the encryption envelope — decrypt first, then verify the inner VC proof

Recipient Management

When a new participant joins a transaction (e.g. buyer’s conveyancer appointed):

1. New Representation credential is issued via OID4VCI
2. Existing encrypted VCs are re-wrapped — the CEK for each VC is wrapped with the new participant’s X25519 public key and added to the recipients array
3. No re-encryption of the content needed — only the key wrapping changes

When a participant is removed or a credential is revoked:

1. The revoked participant’s wrapped key entry is removed
2. Optionally, re-key: generate new CEK, re-encrypt content, wrap for remaining participants (provides forward secrecy)

Confidentiality Tiers

Not all VCs need encryption. The encryption model follows the existing termsOfUse confidentiality levels:

Confidentiality	Encryption	Rationale
public	None — plaintext VC	Public register data, EPC ratings
transactionParticipants	Encrypted, all participant DIDs as recipients	Most property data
roleRestricted	Encrypted, only matching-role DIDs as recipients	Financial data, personal details
partyOnly	Encrypted, only the data subject’s DID as recipient	Identity verification details

12.5 Key Agreement Key Derivation

X25519 key agreement keys are derived alongside Ed25519 signing keys:

• did:key (Persons, managed Organisations): The Ed25519 private key is converted to an X25519 private key using the birational map (RFC 7748 §6.1). The did:key document implicitly includes both verification and key agreement methods.
• did:web (self-hosting Organisations, Transactions): The DID document explicitly lists both an Ed25519VerificationKey2020 (for signing) and an X25519KeyAgreementKey2020 (for encryption) in verificationMethod, with the latter referenced from keyAgreement.

(Full spec: papers/pdtf-v2/11-api-design.md — TODO, papers/pdtf-v2/12-adapter-access-control.md — TODO)

12.6 Environment Separation

PDTF 2.0 uses did:web domains as the structural trust boundary between environments. A credential signed in staging is cryptographically untrusted in production because the issuer DID resolves to a different domain — no configuration flags or environment variables control this; it is an intrinsic property of the identifier.

Three-tier model

Tier	Identity Model	Key Storage	Trust Source	DID Document Hosting
Local dev	did:key only	In-memory	Local JSON file	None (no did:web resolution needed)
Staging	did:web:*.staging.propdata.org.uk	Firestore	Staging federation metadata	GCS staging bucket
Production	did:web:*.propdata.org.uk	Cloud KMS (HSM-backed)	Production federation trust anchor	GCS prod bucket + CDN

Domain conventions

Production:    did:web:adapters.propdata.org.uk:{adapter}
Staging:       did:web:adapters.staging.propdata.org.uk:{adapter}

Production:    did:web:transactions.propdata.org.uk:txn:{id}
Staging:       did:web:transactions.staging.propdata.org.uk:txn:{id}

Production:    did:web:auth.platform.example.com
Staging:       did:web:auth.staging.platform.example.com

Federation:
Production:    https://propdata.org.uk/.well-known/openid-federation
Staging:       https://staging.propdata.org.uk/.well-known/openid-federation

What differs per environment

• Adapter DIDs — different domain, different key pairs, different DID documents
• Transaction DIDs — different domain prefix, separate GCS bucket / CDN
• Account provider DID — different auth domain
• Federation trust anchor — separate trust anchor with separate signing key
• Trust marks — issued by environment-specific trust anchor
• Status lists — separate hosting domain (status.staging.propdata.org.uk)
• Key material — staging uses Firestore for convenience; production uses Cloud KMS with audit logging

What stays the same

• Application code — @pdtf/core, adapters, CLI tooling are environment-agnostic. The environment is determined entirely by configuration: which domain, which KeyProvider implementation, which federation trust anchor URL.
• Schemas — entity graph structure, VC data model, and JSON Schema definitions are identical across all tiers.
• Trust mark definitions — the trust mark IDs and their semantics are the same; only the issuer differs.

Cross-contamination protection

Because did:web encodes the domain into the identifier itself, a staging credential presented to a production verifier will fail federation trust chain resolution — the issuer’s entity configuration points to the staging trust anchor, not the production one. This is not a policy check; it is a structural impossibility. No “wrong environment” bug can cause staging data to be trusted in production unless someone manually copies keys, federation metadata, and trust marks between environments.

Local development

For local development and unit testing, did:key eliminates all infrastructure dependencies. The MemoryKeyProvider generates ephemeral keys, the VcValidator resolves did:key DIDs locally without network access, and an in-memory mock federation (Entity Statements + Trust Marks signed by a dev-only Trust Anchor key) replaces the live trust.pdtf.org endpoints. This means a developer can sign, verify, and compose credentials on a laptop with zero cloud access.

---

13. Sub-Specs Index

#	Document	Status	Description
00	00-architecture-overview.md	This document	Master reference
01	01-entity-graph.md	DRAFTED	V4 schema decomposition, ID-keyed collections, entity relationships
02	02-vc-data-model.md	DRAFTED	W3C VC mapping, evidence model, termsOfUse, claims representation
03	03-did-methods.md	DRAFTED	did:key, did:web, URN schemes, DID document structure
04	04-openid-federation.md	Drafted	OpenID Federation trust architecture: Trust Anchor, Entity Statements, Trust Marks, entity:path delegation claim.
05	05-hosted-adapter-services.md	TODO	Adapter architecture as OID4VCI issuers, federation leaf entities, issuance flow, deployment
06	06-key-management.md	DRAFTED	Google Cloud KMS, key hierarchy, rotation, wallet binding, federation key handling. X25519 encryption key management deferred to Sub-spec 12.
07	07-state-assembly.md	DRAFTED	composeV3/V4StateFromGraph, dependency pruning, migration
08	08-diligence-engine-migration.md	TODO	entity:path mapping, pdtfPaths.js evolution
09	09-nptn-integration.md	TODO	OID4VP credential exchange through NPTN, LMS migration guide
10	10-lms-documentation.md	TODO	Architecture guide for LMS stakeholders
11	11-api-design.md	TODO	FAPI 2.0 security profile, MCP + OpenAPI interface, OID4VCI/OID4VP flows, AI agent skills
12	12-access-control-and-encryption.md	TODO	OID4VP authentication, VP presentation, VC envelope encryption (Phase 2+), platform sync
13	13-reference-implementations.md	DRAFTED	VC validator, federation client, graph composer, DID resolver specs
14	14-credential-revocation.md	DRAFTED	Bitstring Status List hosting, revocation flows, cache strategy
15	15-conformance-testing.md	DRAFTED	Conformance levels, test vectors, interop protocols

---

14. Decisions Log

All architectural decisions made through v0.3 of this document are baked into the spec text above. The decision log below tracks the consensus questions identified for industry review.

14.1 Resolved consensus decisions

#	Question	Decision	Date
Q1.2	Credential granularity for seller attestations	PDTF does not prescribe granularity. Issuers choose what subtree to assert per credential. This tradeoff absorbs into Q1.1 — see resolution note there.	Apr 2026
Q1.3	Multi-credential merge conflicts	PDTF does not prescribe conflict resolution logic. The state assembly library provides a simple timestamp-ordered merge as a convenience; verifiers apply their own business logic (trust level weighting, recency, source preference) on top. All underlying credentials remain available for inspection.	Apr 2026
Q2.2	Trust-level conflict visibility	Conflict surfacing is a verifier/UI concern, not a spec requirement. All trust levels and sources are carried in the credentials themselves, so consumers can render them however they wish.	Apr 2026
Q3.3	Credential id required	Yes — every credential MUST include an id for deduplication during state assembly. Privacy implications of credential correlation are secondary to assembly determinism. Format: urn:pdtf:vc:{uuid}.	Apr 2026
Q4.1	Organisation DID hosting for small firms	Both self-hosted did:web and orchestrator-hosted DIDs are supported. In Phase 1 and beyond, small firms are expected to use orchestrator-hosted identities — orchestrators provide the account and auth UX firms already rely on, and manage DIDs on their behalf.	Apr 2026
Q4.2	Lender access pattern	Revised Oct 2026 (D32). Lenders are parties to the transaction: added to the roster and issued a TransactionRoleCredential (role: "Lender") per application (see sub-spec 02 §3.7). Restricted data requires a relationship credential on the transaction (SellerCapacity / Offer / Representation / TransactionRole), composed with termsOfUse.roleRestrictions. The earlier DelegatedConsentCredential, which carried an access scope and expiry, is withdrawn as an entity; whether a scoped consent credential should be layered on top for finer-grained access is an open consultation question. No role-based lender pooling.	Oct 2026
Q5.2	Multiple issuers per path	Permitted and expected. Multiple commercial search providers, valuation services, and similar will legitimately issue credentials against the same entity:path combinations. Trust marks do not enforce exclusivity.	Apr 2026
Q6.1–Q6.3	Migration strategy	Migration proceeds by running PDTF v1 and v2 operations in parallel. New transactions start on v2; in-flight transactions continue on v1 until they close. When all active transactions support v2 output, v1 is retired. State assembly supports both formats throughout the overlap.	Apr 2026

14.2 Open consensus questions

#	Question	Spec Ref	Decision	Date
Q1.1	Claims merge strategy: REPLACE vs MERGE vs hybrid.	02 §5, 07 §4	Issuer-driven credential granularity cannot be mandated (see Q1.2 resolution), which weakens the REPLACE case: REPLACE requires issuers to understand path boundaries precisely. MERGE with schema-driven pruning is simpler for issuers but requires the assembler to understand dependencies. Tradeoff still open for industry consensus.
Q2.1	Multi-property transactions: how do overlays, form mappings, and v3 propertyPack (singular) handle multiple properties?	01 §9.1, 07 §12.1

14.2.1 Theme 7: Entity Model Boundaries

Decomposing the v1 monolithic property pack schema into entity-scoped schemas raises design questions that weren’t captured in the original themes. The Entity Graph (sub-spec 01) defines the entities and their relationships, but the exact field-level seams between them require validation. This theme collects those decisions.

#	Question	Preferred direction	Status
Q7.1	Where does the schema-level ownership object decompose to?	Top-level properties of v1 ownership (numberOfSellers, outstandingMortgage, existingLender, helpToBuyEquityLoan, limitedCompanySale, etc.) move to Transaction.saleContext.*. The legal interest being transferred (formerly ownershipsToBeTransferred[]) moves to the top level of the Title entity, because a TitleCredential fundamentally represents an ownership interest being conveyed. Supporting register evidence (register extract, charges) moves under a title sub-object on the Title entity. Note: this is the schema decomposition question — distinct from the entity-graph-level SellerCapacity credential (the thin Person↔Title assertion, see sub-spec 02 §3.4), which is unchanged.	Preferred
Q7.2	Identifier for unregistered titles	urn:pdtf:unregisteredTitle:{uuid} per sub-spec 03 §10.1, but UUID derivation method (v4 random vs v5 deterministic from UPRN) and first-registration transition mechanism still open. This is a hard dependency for Q7.1 — Title.ownershipToBeTransferred applies to registered and unregistered titles equally, so the identifier question blocks finalisation.	Open
Q7.3	Field-level seams between Property and Title	The boundary between physical property facts (EPC, flood, construction) and legal title facts (charges, proprietorship, lease terms) is clear in principle, but edge cases exist (e.g., boundary disputes, rights of way). Validate on a field-by-field basis during schema review.	Open

---

15. Implementation Priority

Reordered to reflect the OpenID ecosystem alignment:

1. Entity graph spec (01) — formalise v4 schemas, build on existing branch work
2. VC data model (02) — define the credential format, evidence, termsOfUse
3. OpenID Federation (04) — Trust Anchor, Entity Statements, Trust Marks, entity:path delegation authorisation
4. DID methods (03) — key generation, DID document hosting, federation entity configuration
5. Key management (06) — Google Cloud KMS setup, federation key handling
6. One adapter PoC (05) — EPC adapter as OID4VCI credential issuer with federation entity configuration
7. State assembly (07) — composeV3StateFromGraph with validation against existing output
8. Reference implementations (13) — VC validator with federation trust chain resolution, federation client
9. API design (11) — FAPI 2.0 security profile, OID4VCI/OID4VP endpoints, MCP binding
10. Access control (12) — OID4VP participation credential verification
11. DE migration (08) — entity:path mapping
12. NPTN integration (09) — OID4VP credential exchange design for LMS
13. LMS documentation (10) — stakeholder guide

---
